Boom Specifications – Roll-and-Fold Design

Height & Reach37X-4R
Vertical reach36.5 m119’9″
Horizontal reach32.5 m106’8″
Reach from front of truck30.96 m101’7″
Reach depth23.8 m78’1″
Unfolding height8.4 m27’7″
Boom Section Articulation
1st section articulation93 °
2nd section articulation180 °
3rd section articulation240 °
4th section articulation250 °

 Boom Section Length
1st section length8.9 m29’9″
2nd section length7.85 m25’9″
3rd section length7.9 m25’11”
4th section length7.85 m25’9″
General Specs
Pipeline size (ID) metric ends125 mm5″
End hose – length3.5 m11’6″
End hose – diameter125 mm5″
Front Outrigger Spread: X-style, telescope & extend down6.2 m20’4″
Rear Outrigger Spread: Swing & extend down7.6 m25’3″

Pump Specifications

Outputrod side
piston side
160 m3/hr
108 m3/hr
209 yd3/hr
141 yd3/hr
Pressurerod side
piston side
85 bar
130 bar
1,232 psi
1,886 psi
Material cylinder diameter230 mm9″
Stroke length2100 mm6’11”
Stroke lengthper minute
rod side
piston side
1 minute
29
21
Volume ControlZero to full
Hydraulic system pressure350 bar5,075 psi
Differential cylinder diameter140 mm5.5″
Rod diameter80 mm3″
Maximum size aggregate60 mm2.4″

37-Meter Roll and Fold Concrete Pumps

When it comes to construction and concrete work, having the right equipment plays a prominent role in efficiently producing quality results. While a concrete boom pump offers improved performance over traditional mixing and material distribution methods, knowing when to use roll and fold concrete pumps is critical to getting the job done right.

As a leading source of concrete pumps throughout the U.S., Canada and beyond, DY offers a variety of competitively priced models to choose from.

The Benefits of Using DY Roll Fold Concrete Boom Pumps

A roll fold concrete boom pump conveniently rolls out and rolls in, while a Z-type boom operates by folding in and out at hinge joints. The roll and fold boom is a time-tested design favored by many seasoned and experienced drivers, as well as companies looking for equipment that’s easy to operate and offers outstanding versatility. Roll fold concrete boom pumps provide an extremely stable design with exceptional output and pressure.

DY Concrete Pumps offers a variety of roll and fold models to meet your unique requirements. Our pumps feature the third section with 240-degree articulation for increased flexibility that’s not available on our competitor’s 37-meter models. The roll and fold design allows for high-volume pumping in buildings with a low ceiling height, eliminating the need for the operator to continually reconfigure a Z-type boom. When it comes to jobs that require pouring close to the truck or working in open spaces, nothing beats the efficiency and ease of use of a 4-section concrete boom pump.

Reliable and Productive Roll Fold Concrete Pumps

With years of end user experience, DY specializes in providing exceptional quality equipment backed by excellent customer service and support. Whether you’re in the market for a 4-section concrete boom pump for a commercial construction site or a 37-meter concrete boom pump for residential work, we’ll help you find a solution in stock.

All our booms are designed and manufactured using robotic welded, high-quality steel and feature:





Roll and Fold Concrete Boom Pumps for Sale

DY Concrete Pumps is known for “Taking Utilization to a New Level” because of our innovative product line and affordable prices. Our concrete pumps are engineered with the power and strength to push viscous, heavy and jagged-shaped materials out for even distribution without build-up or blockages that negatively impact productivity. From choice of chassis including Mack, Western Star, Freightliner, Kenworth and Peterbilt to flexible financing with low-interest rates, we’re the one-stop shop for everything you require.

Learn more about the benefits and advantages of choosing a roll and fold 4-section, 37-meter concrete boom pump from DY. Contact us by filling out our online information request form to speak with a knowledgeable and friendly representative. We’ll be happy to answer all your questions and provide a competitive quote.

Pump Working Range

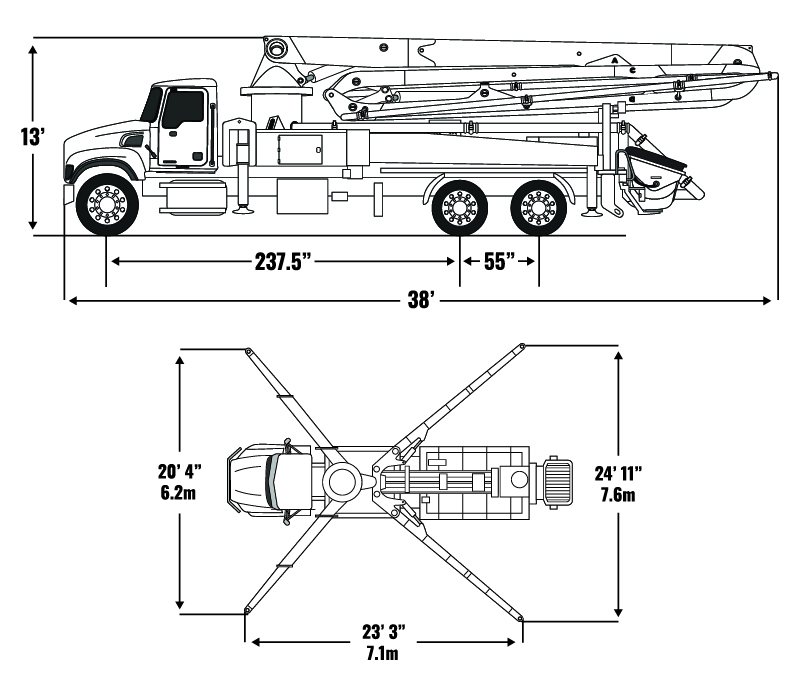

diagram showing DY Concrete Pumps 37X-4R pump working rangeDY Concrete Pumps 37X-4R concrete boom pump with dimensions

Photos and drawings are for illustrative purposes only. Dimensions will vary with different truck makes, models and specifications. For available options, please contact the factory.
