CTY-100 Specifications

Dimensions & Weight
Weight17,380 lbs7,882 kg
Length27' 11"8.5 m
Width8' .5"2.45 m
Height6' 8"2.04 m
Hopper14.1 ft3400 L
Hydraulic Tank45 GAL170 L
Water Tank150 GAL571 L
Fuel Tank22 GAL83 L

Chassis Specifications
Make and ModelFordF550 4x4
Horsepower & Torque450 hp935 ft/lbs
TransmissionTorqshift Auto
Transmission Gears6
Max GVWR19,500 lbs8,845 kg
Technical Specifications
Output: Rod Side103 yd3/hr78 m3/hr
Output: Piston Side70 yd3/hr53 m3/hr
Pressure: Rod Side1,015 psi70 bar
Pressure: Piston Side1,508 psi104 bar
Material Cylinder Diameter8"200 mm
Material Cylinder Stroke Length47"1,200 mm
Max Strokes Per MinuteRod Side
Piston Side
Volume ControlZero - Full
Outlet5"125 mm

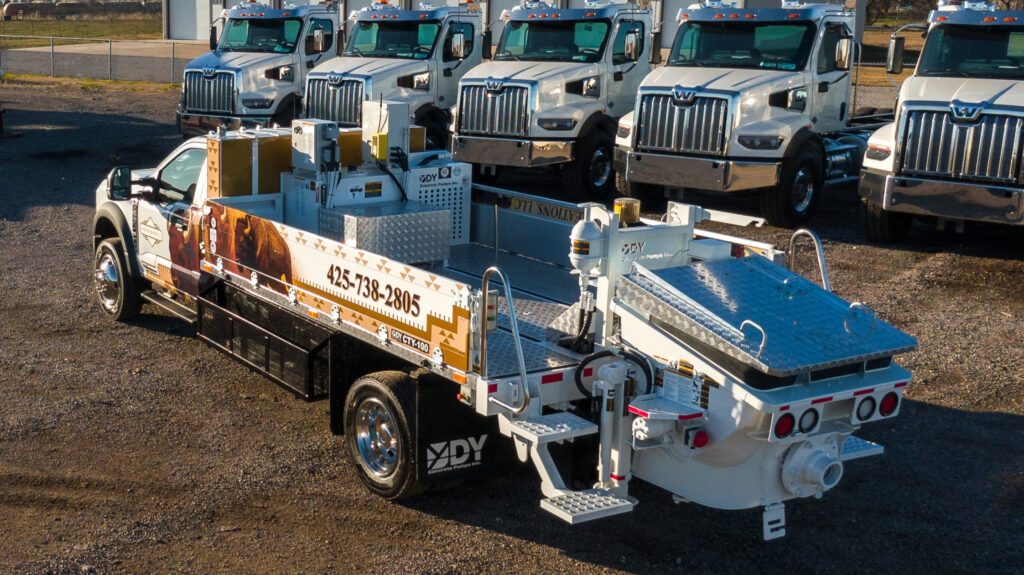

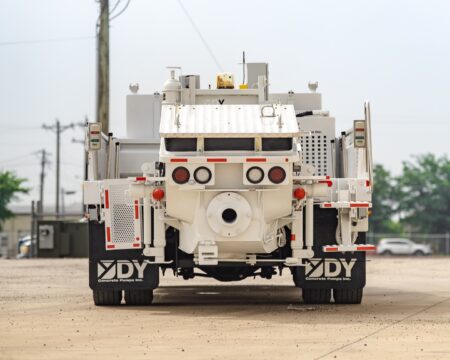

DY Concrete Pumps CTY-100 Flatbed Concrete Line Pump

Our CTY-100 line pump is mounted on a medium-duty truck rather than a heavy duty commercial chassis, which means you don’t need a CDL to operate it. This offers you versatility and convenience you may need for certain construction jobs.

If a concrete line pump is appropriate for your construction project, we think you will appreciate our CTY-100 Concrete Line Pump. It is a flatbed concrete line pump that virtually any of your team can easily operate to get your pump in the right position for the job.

What Are the Benefits of the CTY-100 Concrete Line Pump?

The DY CTY-100 City Pump is the perfect line pump for urban environments. The flatbed mounting means you have ultimate flexibility and can take this pump almost anywhere to perform almost any concrete pumping job you are contracted for.

Best of all, the CTY-100 City Pump does not require a commercial driver’s license (CDL) to operate, which means you can put any of your workers who can drive in charge of delivering or maneuvering the pump, adding to your overall efficiency and productivity level.

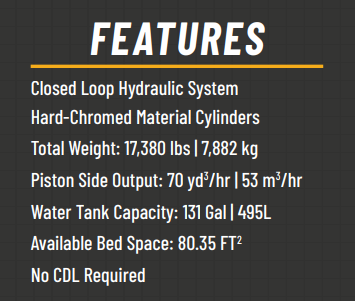

What Are the Features of the CTY-100 Concrete Line Pump?

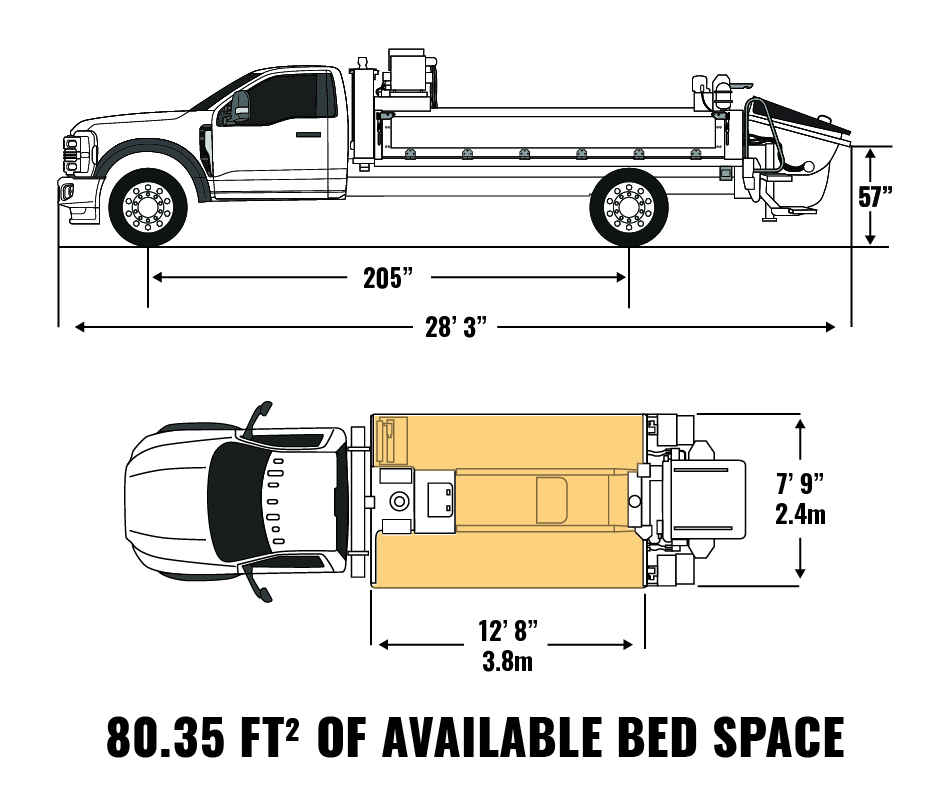

This concrete line pump is a 9,000 lb. pump that measures 27’ 11” x 8’ 5” x 6’ 8”. Its hopper can hold 14.1 cubic feet of material. It features a 45-gallon hydraulic tank, a 150-gallon water tank and a 22-gallon fuel tank. The rod side output is 103 cubic yards per hour while the piston side output is 70 cubic yards per hour. Rod side pressure is 1,015 PSI, while piston side pressure is 1,508 PSI. Maximum strokes per minute are 34 on the rod side and 23 on the piston side. It has an 8” cylinder diameter and 47” material cylinder stroke length. It has a 5” outlet and zero to full volume control.

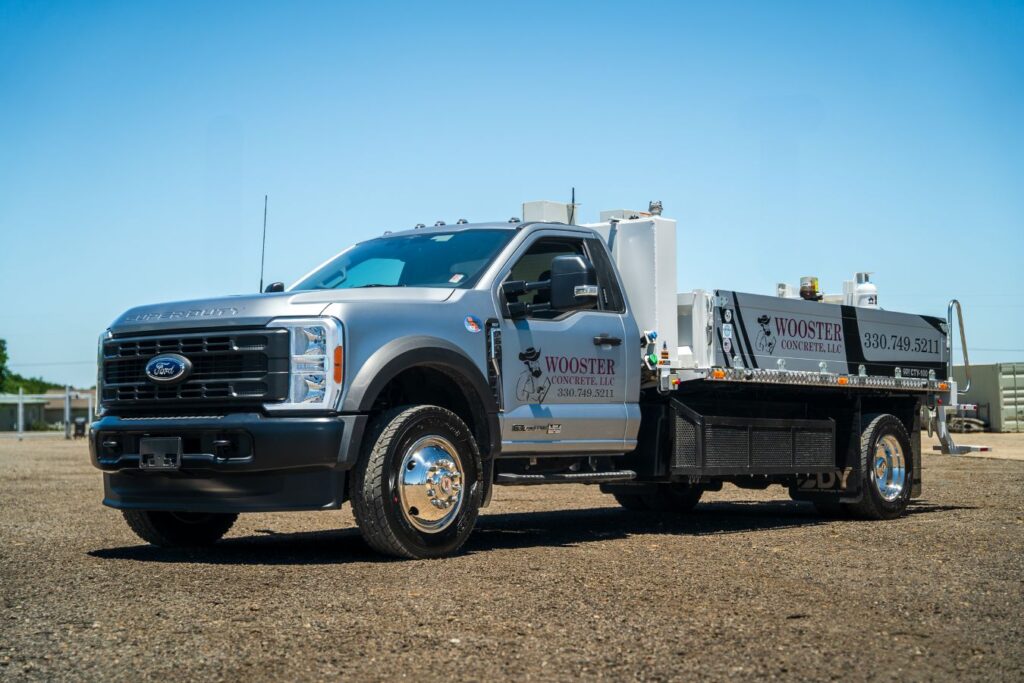

The CTY-100 is mounted on a Ford F550 chassis with 4×4 and 4×2 options available with a 6.7-liter Powerstroke engine that delivers 450 horsepower and 935 ft/lbs. of torque. It comes with a 6-gear Torqshift Auto transmission with a maximum GVWR of 19,500 lbs. Contact us to inquire about other chassis brand options.

Get a Quote on The CTY-100 Concrete Line Pump

The company to contact for all your concrete pump needs, both line pumps and boom pumps, is DY Concrete Pumps. With a reputation for excellence in Korea dating back decades and an unmistakable presence as a leading manufacturer of concrete pumps in North America, we are the obvious choice when you need a concrete line pump mounted on a flatbed.

Our concrete line pumps are unmatched in reliability and quality and will handle your toughest construction jobs for a long time to come. If you ever need support for your CTY-100 concrete line pump, all you have to do is contact us. We have a full inventory of new replacement parts and qualified experts who can answer all your questions. If you’re ready to order your CTY-100 concrete line pump, contact us online or call 1-844-397-8677 now for a custom quote or information about DY sales representatives near you.
