Boom Specification – Z-and-Roll-Fold Design

Height & Reach40X-5ZR
Vertical reach39.7 m130’2″
Horizontal reach35.8 m117’5″
Reach from front of truck32.6 m107′
Reach depth27.4 m89’9″
Unfolding height7.6 m24’9″
Boom Section Articulation
1st section articulation90 °
2nd section articulation180 °
3rd section articulation245 °
4th section articulation180 °
5th section articulation250 °

Boom Section Length
1st section length8.4 m27’6″
2nd section length6.7 m22′
3rd section length6.7 m22′
4th section length7 m22’8″
5th section length7 m22’8″
General Specs
Pipeline size (ID) metric ends125 mm5″
Rotation360 degree continuous swing
End hose – length3.5 m11’6″
End hose – diameter125 mm5″
Front Outrigger Spread: X-style, telescope & extend down6.4 m21′
Rear Outrigger Spread: Swing & extend down8.7 m28’5″

Pump Specifications

Outputrod side
piston side
160 m3/hr
108 m3/hr
209 yd3/hr
141 yd3/hr
Pressurerod side
piston side
85 bar
130 bar
1,232 psi
1,886 psi
Material cylinder diameter230 mm9″
Stroke length2100 mm6’11”
Stroke lengthper minute
rod side
piston side
1 minute
Volume ControlZero to full
Hydraulic system pressure350 bar5,075 psi
Differential cylinder diameter140 mm5.5″
Rod diameter80 mm3″
Maximum size aggregate60 mm2.4″

40-Meter ZR Concrete Boom Pumps

Maximum versatility is the defining characteristic of our 40-meter concrete boom pump which maximizes the three axle chassis with the longest boom reach possible creating a lower truck chassis cost. As with our 38– and 43-meter booms, the mid-size ZR boom pump is perfect for residential and commercial concrete pouring projects. Featuring a 360-degree continuous swing boom, the 40X-5ZR is highly maneuverable and can reach places that are inaccessible to less agile machines. Your crew will be able to complete jobs faster and more efficiently, which will have a positive impact on your company’s bottom line.

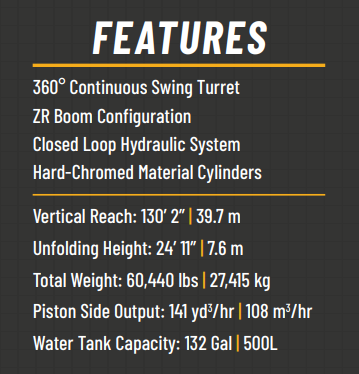

40X-5ZR Features and Benefits

Our 40-meter concrete boom pump will add value to your business in so many ways:

Request A Quote Today

Technical Specifications Overview

The 40X-5ZR offers a maximum horizontal reach of 117’ 5”. The reach capacity from the front of the vehicle is 107′, while the reach depth is 89’ 9” and the total unfolding height is 24’ 9”. Other specs include an end hose length of 11’ 6” and a hose diameter of 5”, a hydraulic system pressure of 5,075 psi and a material cylinder diameter of 9”.

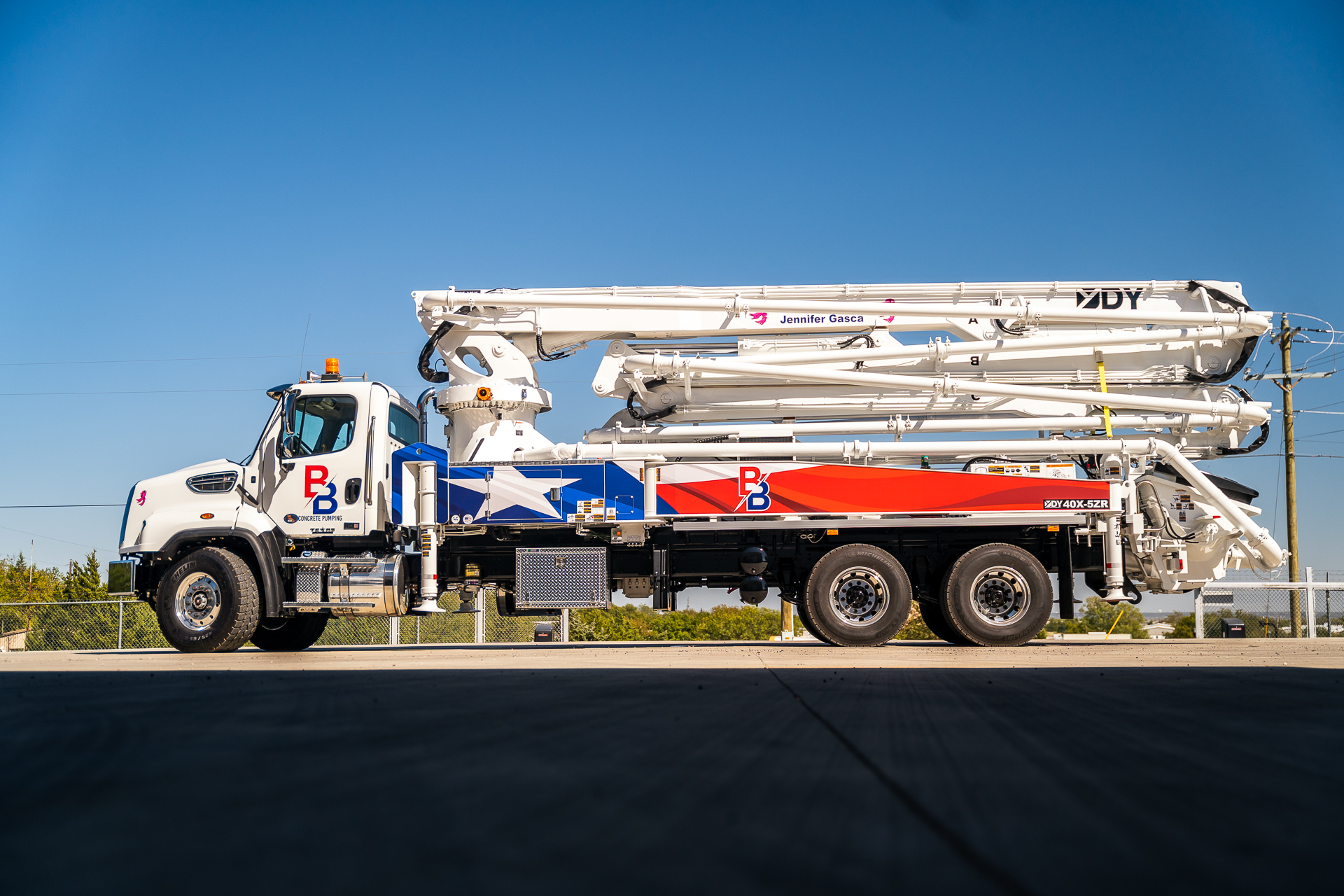

Why Choose DY Concrete Pumps as Your Residential/Commercial Pump Provider?40 meter 5 section ZR-fold boom pump manufactured for Tri-Way

DY Concrete Pumps offers years of end user experience and expertise to construction operations throughout North America. We’re known for providing top-quality concrete pumps that are reliable and easy to use, which saves our customers time and money. The high quality of our concrete pumps also ensures minimal preventive maintenance and repairs, resulting in low long-term ownership costs.

We also take pride in delivering exceptional customer support. With convenient locations in Dallas, TX, and Calgary, AB, we’re able to provide fast, attentive service to our entire North American customer base. Whether you need replacement parts, telephone technical support or in-person service from our regional teams, we’ll always be there when you need us.


Learn More About the Advantages of Adding the 40X-5ZR to Your Construction Equipment Fleet

If you have questions or would like additional information regarding our 40-meter concrete boom pump, feel free to fill out and submit our convenient online contact form and we’ll provide a prompt response. We’ll also be happy to furnish a no-obligation custom quote.

DY Concrete Pumps: Taking Utilization to a New Level.

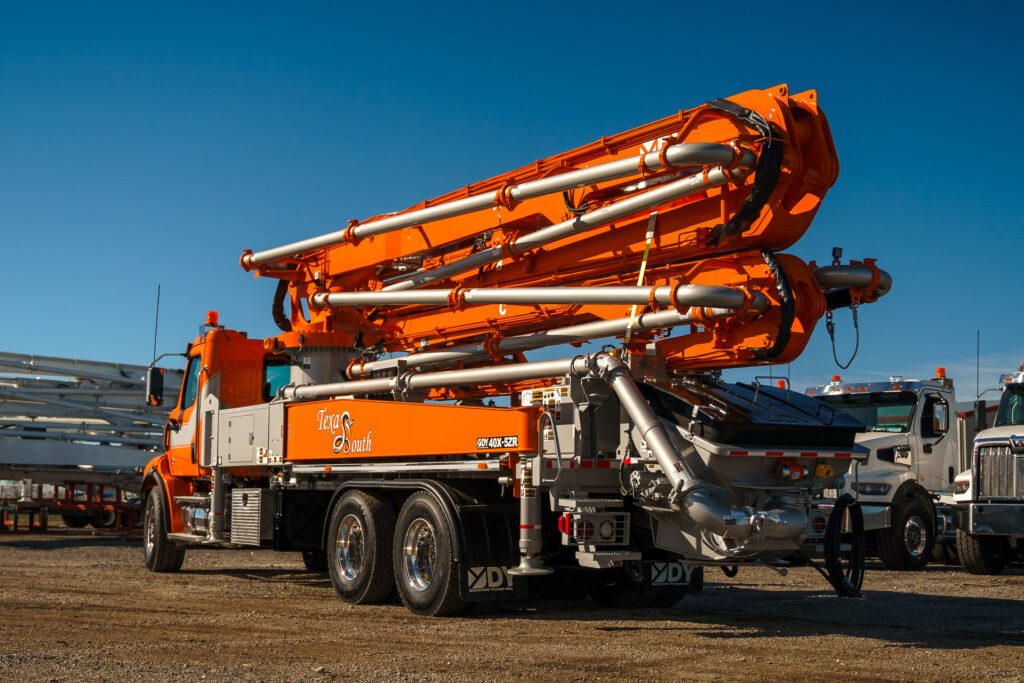

40X-5ZR concrete boom pump manufactured by DY Concrete Pumps for Osmond Concrete Pumping

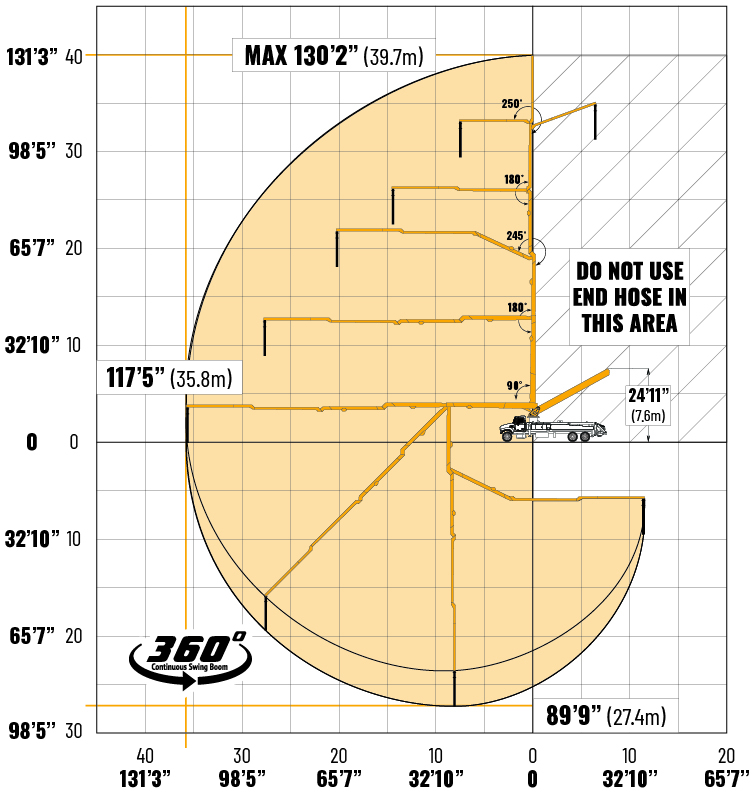

Pump Working Range

diagram showing DY Concrete Pumps 40X-5RZ pump working range

Photos and drawings are for illustrative purposes only. Dimensions will vary with different truck makes, models and specifications. For available options, please contact the factory.

Operator Friendly HBC Radio Remote

financing options available view our latest brochure
request a custom quote today

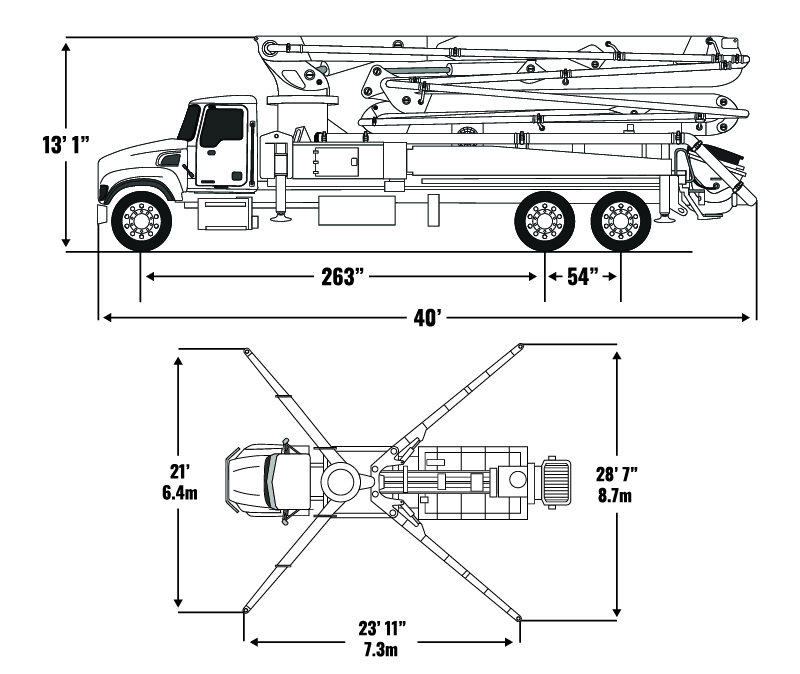

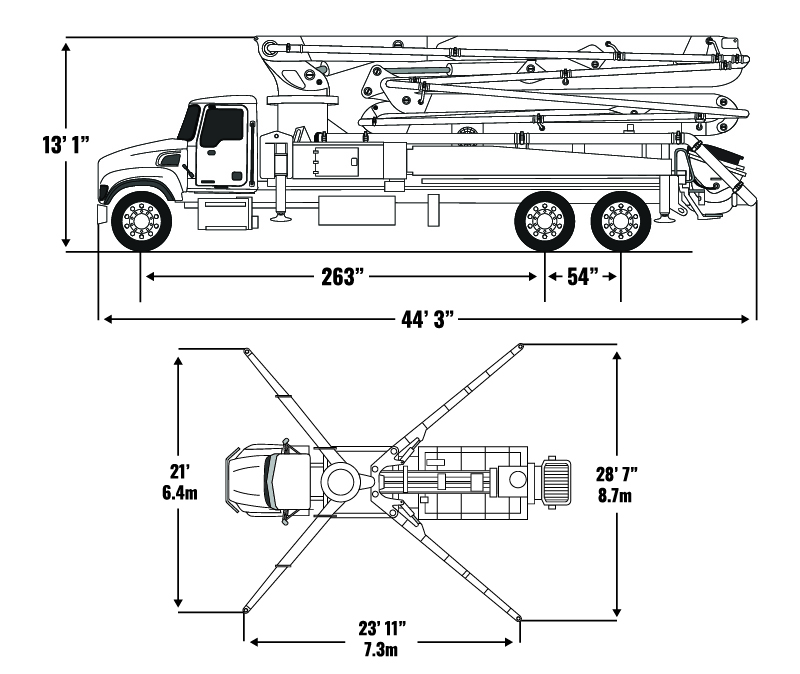

Chassis Options
