Boom Specifications – Z-and-Roll-Fold Design

Height & Reach38X-5ZR
Vertical reach37.5 m123’4″
Horizontal reach33.5 m109’11”
Reach from front of truck29.7 m97’5″
Reach depth25.4 m83’4″
Unfolding height7.2 m23’7″
Boom Section Articulation
1st section articulation92 °
2nd section articulation180 °
3rd section articulation245 °
4th section articulation180 °
5th section articulation250 °

 Boom Section Length
1st section length8.3 m27’3″
2nd section length6.1 m20’1″
3rd section length6.1 m20’1″
4th section length6.5 m21’4″
5th section length6.5 m21’4″
General Specs
Pipeline size (ID) metric ends125 mm5″
Rotation360 degree continuous swing
End hose – length3.5 m11’6″
End hose – diameter125 mm5″
Front Outrigger Spread: X-style, telescope & extend down6.2 m20’4″
Rear Outrigger Spread: Swing & extend down7.6 m25′

Pump Specifications

Outputrod side

piston side
160 m3/hr
108 m3/hr
209 yd3/hr
141 yd3/hr
Pressurerod side
piston side
85 bar
130 bar
1,232 psi
1,886 psi
Material cylinder diameter230 mm9″
Stroke length2100 mm6’11”
Stroke lengthper minute
rod side
piston side
1 minute
29
21
Volume ControlZero to full
Hydraulic system pressure350 bar5,075 psi
Differential cylinder diameter140 mm5.5″
Rod diameter80 mm3″
Maximum size aggregate60 mm2.4″

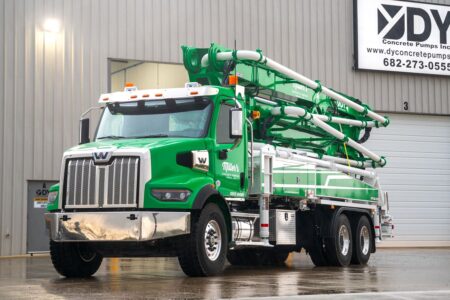

38-Meter ZR Concrete Boom Pumps38-meter ZR concrete boom pump manufactured by DY Concrete Pumps for Manotick Concrete

Concrete boom truck pumps are an essential piece of equipment for all types of construction sites and projects. Whether you’re laying down a driveway on a residential property or building a multi-level commercial office complex downtown, it’s crucial to choose a truck-mounted boom pump suited to your applications.

DY Concrete Pumps Inc. offers a broad range of concrete boom truck sizes to ensure an efficient and effective fit. We call on years of industry experience to deliver solutions that completely solve your concrete mixing and distribution challenges at a price that makes sense to your bottom line.

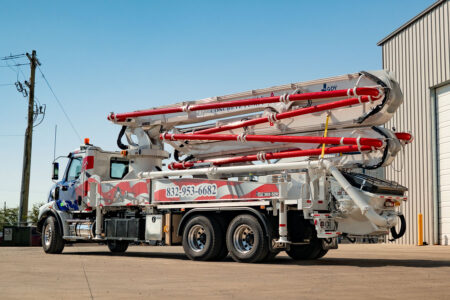

Engineered Construction's DY 38X-5ZR manufactured by DY Concrete Pumps38-Meter Concrete Boom Pumps

When you’re in the market for a short to mid-size concrete boom truck pump, DY carries a variety of top-quality solutions in stock. Our 38-meter concrete boom pump offers a compact design and exceptional versatility for tackling residential and commercial construction projects. Units are extremely mobile featuring a Z-type boom capable of low profile folding and unfolding for working in tight confines.

While many residential builders do not budget for a truck-mounted concrete boom pump, the reality is it’s the best choice for many projects. A 38-meter, ZR concrete boom pump provides the flexibility to work faster, reduce material costs and deliver improved results for everything from sidewalks and slabs to patios and parking areas.

Our 38-meter boom pump is an exceptional choice for builders and contractors with both residential and commercial jobs. The ZR pump is designed for high-productivity with the ability to deliver a consistent flow of concrete to large foundation and elevated positions without the use of buckets and cranes. The narrow profile of our truck-mounted boom pump allows for maneuvering around urban areas and working in tight and confined spaces. An additional feature of our concrete boom trucks is our 360-degree rotating boom which eliminates the need for excessive maneuvering of the truck around the job site.

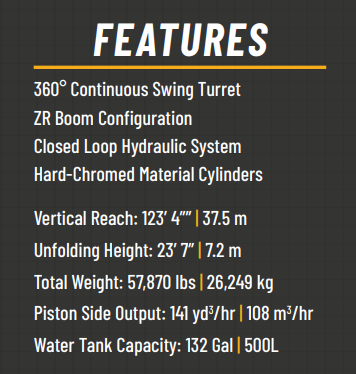

Additional features and benefits include:

Request A Quote

Get in Touch About Truck-Mounted Concrete Boom Pumps for Sale

DY prides itself on offering the highest quality products backed by customer service dedicated to your success. We strive to be your sole source for all your concrete needs by providing everything from expert assistance choosing the right concrete boom truck sizes and flexible financing solutions to locally-serviced parts and support throughout the U.S. and Canada.

Learn more about our ZR 38-meter concrete boom pumps for sale today. Contact us by submitting our online form to request to speak with a friendly and professional representative.

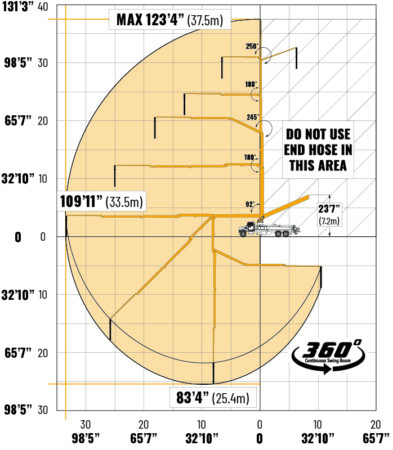

Pump Working Range

diagram showing DY Concrete Pumps 38X-5RZ pump working range

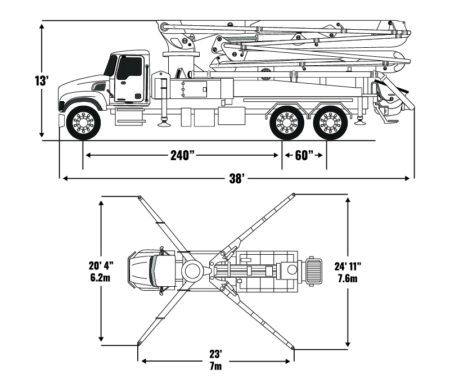

Photos and drawings are for illustrative purposes only. Dimensions will vary with different truck makes, models and specifications. For available options, please contact the factory.

Operator Friendly HBC Radio Remote

financing options available view our latest brochure
request a custom quote today

Chassis Options
