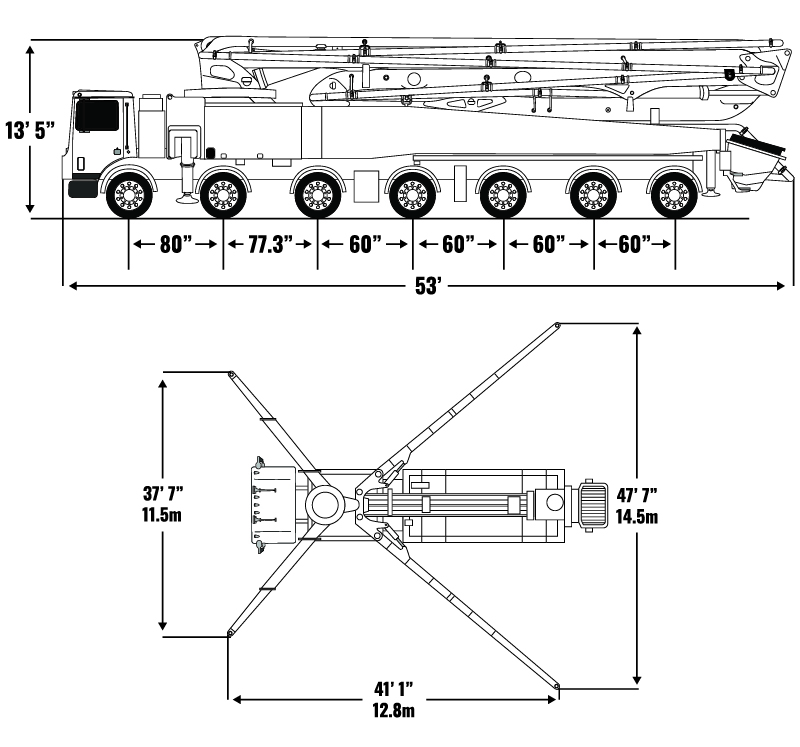

Boom Specifications – Roll-and-Z-Fold Design

Boom Section Lengths
1st section length12.5 m41'
2nd section length10.2 m33′ 5″
3rd section length10.1 m33′ 1″
4th section length12.5 m41'
5th section length12.8m42′
Boom Section Articulation
1st section articulation91 °
2nd section articulation180 °
3rd section articulation180 °
4th section articulation230 °
5th section articulation230 °

Boom Section Lengths
1st section length12.5 m41'
2nd section length10.2 m33′ 5″
3rd section length10.1 m33′ 1″
4th section length12.5 m41'
5th section length12.8m42′
General Specs
Pipeline size (ID) metric ends125 mm5″
Rotation360 degree non-continuous swing
End hose – length3.5 m11’ 6″
End hose – diameter125 mm5″
Front Outrigger Spread: X-type, telescope & extend down11.5 m37′ 7″
Rear Outrigger Spread: Swing out & extend down14.5 m47′ 6″

Pump Specifications


Outputrod side
piston side
180 m3/hr
121 m3/hr
235 yd3/hr
158 yd3/hr
Pressurerod side
piston side
85 bar
130 bar
1,232 psi
1,886 psi
Material cylinder diameter230 mm9″
Stroke length2100 mm6’11”
Max strokesPer minute
Rod side
Piston side
1 minute
34
23
Volume controlZero to full
VibratorStandard
Hard-chromed material cylindersStandard
Hydraulic systemClosed-loop
Hydraulic system pressure350 bar5,075 psi
Differential cylinder diameter140 mm5.5″
Road diameter80 mm3″
Maximum size aggregate60 mm2.4″

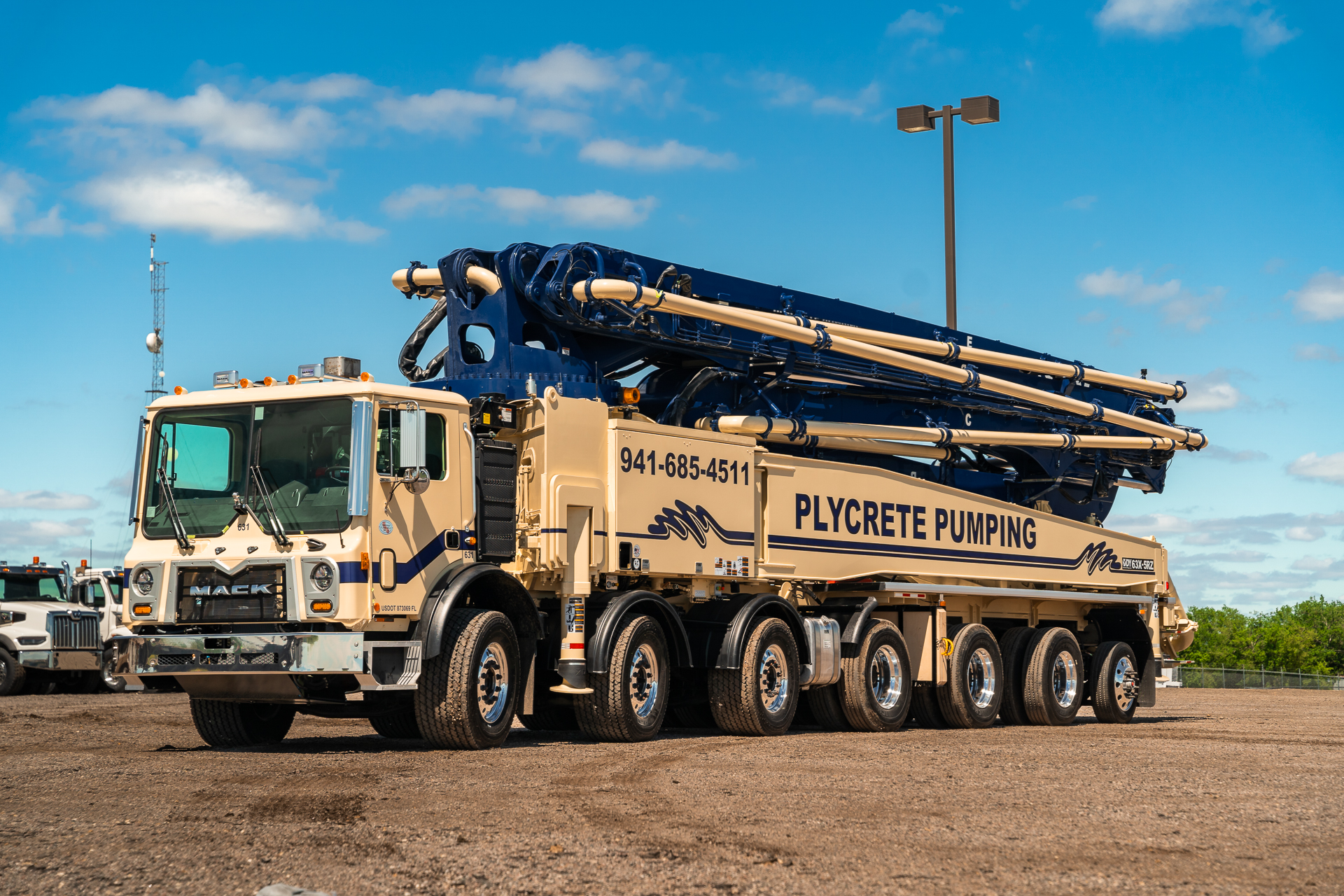

NOW AVAILABLE, 63-METER X 5-SECTION RZ CONCRETE BOOM PUMP

Large scale construction jobs require large scale equipment. The 63X-5RZ provides long reach of a 63-meter boom with the industry leading customer service of DY Concrete Pumps. Ideal for pumping concrete on stadium job-sites, shopping malls, infrastructure projects, and other large scale construction projects. The DY 63X-5RZ is the “go to” big boom in the North American market.

When you’re looking for ways to speed up productivity, improve quality and overcome the challenges of modern commercial construction projects, nothing beats the performance and versatility of a 5-section, 63-meter concrete boom pump with x-style outriggers.

REQUEST A QUOTE NOW

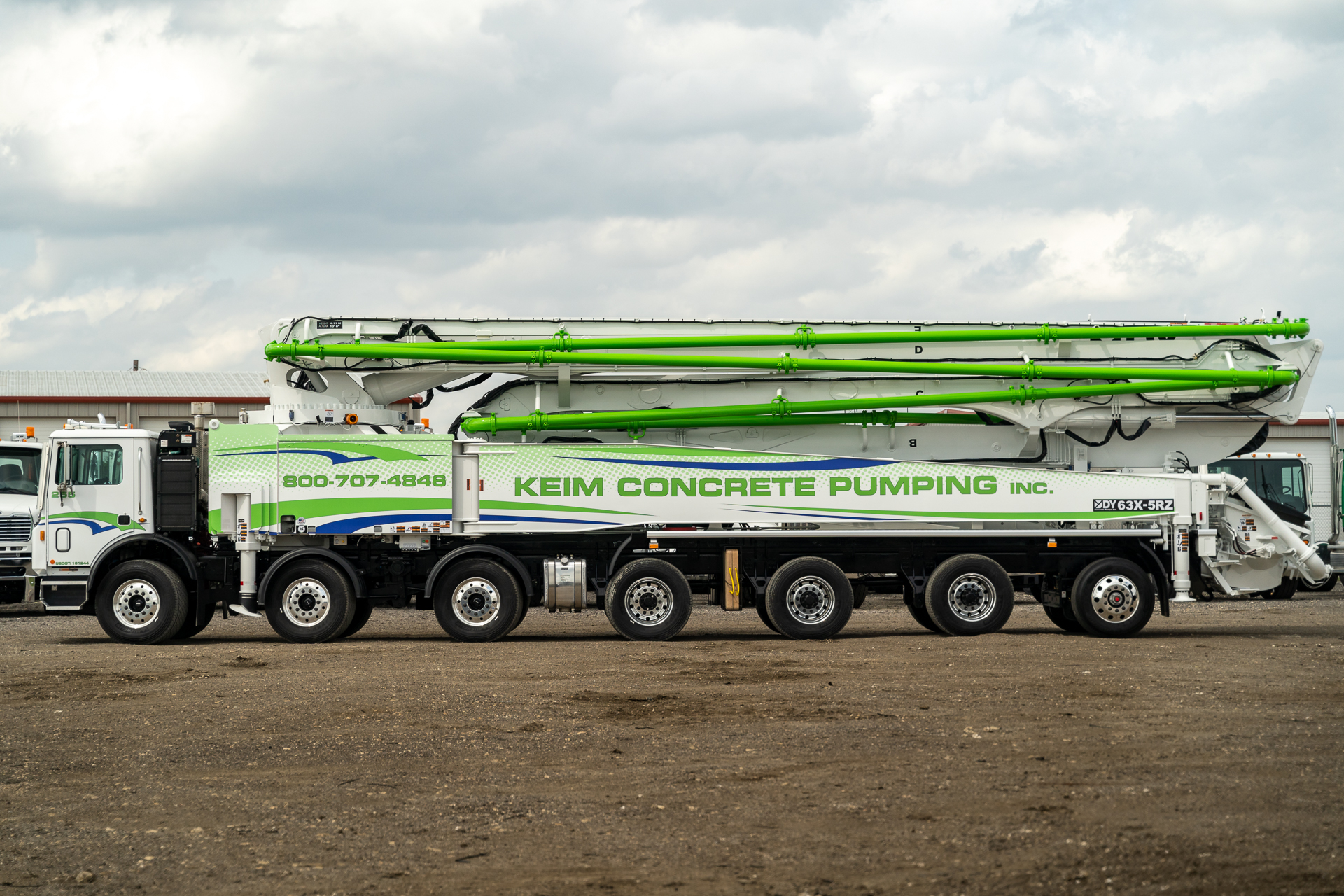

THE MOST IMPRESSIVE 57-METER CONCRETE BOOM PUMPS FOR COMMERCIAL PROJECTS

The RZ 63-meter concrete boom pump is our longest and most productive pump for large commercial construction sites. The 63X-5RZ features a 5-section boom that allows for ultimate maneuverability compared to other 63-meter boom pumps available in todays market. Ideal for use on large scale construction projects, you benefit from high-performance delivery of materials in tight spaces and to elevated locations for a faster return on your investment.

This 63-meter concrete boom pump provides a x-style outrigger layout for exceptional jobsite mobility. The 5-section design with simplified radio remote controls make it easier for operators to move the boom into the optimal position for less labor intensive pumping of concrete.

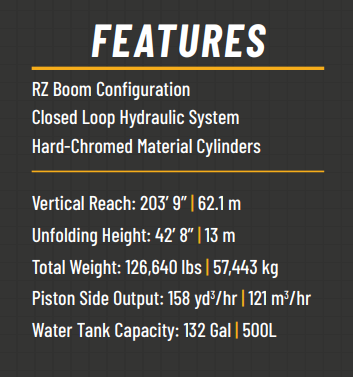

Whether you’re working in a congested urban center or taking on a massive high-rise project, you benefit from exceptional vertical, horizontal and front-of-truck reach, as well as:

DY CONCRETE PUMPS: BUILT TO PERFORM!

The most significant and challenging commercial construction projects call for innovative solutions that save time and money while delivering results. Our 5-section, 63-meter concrete boom pumps help you get more work done in less time, lowering your company’s manual labor requirements so you can better allocate your assets.

Whether you’re looking for an effective high-rise concrete boom pump or an answer for keeping pace on a massive commercial project, we have the solutions you’re searching for. Contact us by filling out our online request form to receive assistance from a knowledgeable, live representative.

Want to talk to your local sales representative? Unlike other manufacturers, we actually answer our phones! Find your local sales representative and call them today.

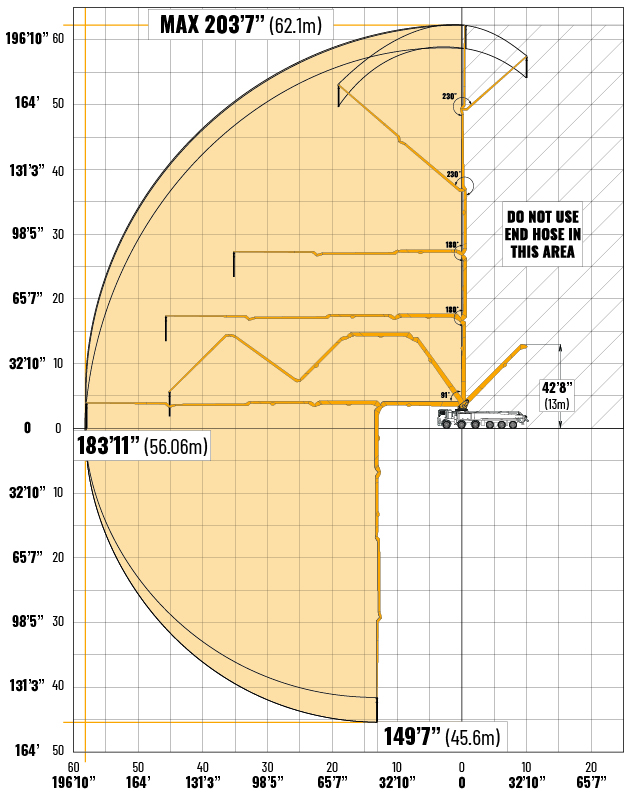

Pump Working Range
