Boom Specifications – Roll-and-Z-Fold Design
| Height & Reach | 43X-5RZ | |
|---|---|---|
| Vertical reach | 42.3 m | 138′ 9″ |
| Horizontal reach | 38.3 m | 125′ 8″ |
| Reach from front of truck | 36.76 m | 120′ 7″ |
| Reach depth | 30.8 m | 101′ 1″ |
| Unfolding height | 8.2 m | 26′ 11″ |
| Boom Section Articulation | |
|---|---|
| 1st section articulation | 92 ° |
| 2nd section articulation | 180 ° |
| 3rd section articulation | 180 ° |
| 4th section articulation | 245 ° |
| 5th section articulation | 250 ° |
| Boom Section Length | ||
|---|---|---|
| 1st section length | 7.8 m | 25′ 7″ |
| 2nd section length | 6.8 m | 22′ 4″ |
| 3rd section length | 7.2 m | 23′ 7″ |
| 4th section length | 8 m | 26′ 3″ |
| 5th section length | 8.39 m | 27′ 6″ |
| General Specs | |||
|---|---|---|---|
| Pipeline size (ID) metric ends | 125 mm | 5″ | |
| Rotation | 360 degree continuous swing | ||
| End hose – length | 3.5 m | 11’ 6″ | |
| End hose – diameter | 125 mm | 5″ | |

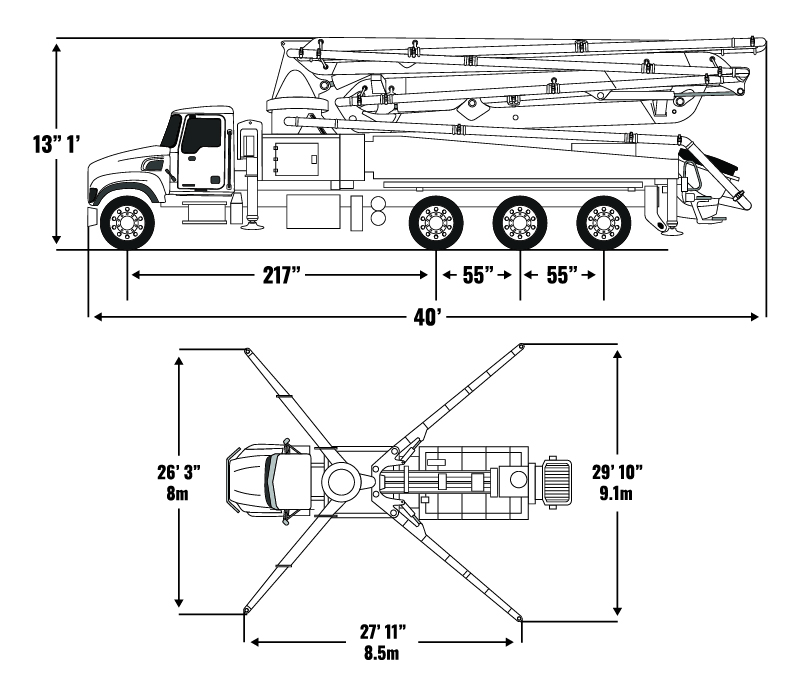

| Front Outrigger Spread: X-style, telescope & extend down | 8 m | 26′ 3″ | |
| Rear Outrigger Spread: Swing & extend down | 9.1 m | 29′ 10″ | |
Pump Specifications
| Output | Rod side Piston side | 160 m3/hr 108 m3/hr | 209 yd3/hr 141 yd3/hr |
| Pressure | Rod side Piston side | 85 bar 130 bar | 1,232 psi 1,886 psi |
| Material cylinder diameter | 230 mm | 9″ | |
| Stroke length | 2100 mm | 6’11” | |
| Max strokes | Per minute Rod side Piston side | 1 minute 29 21 |
|
| Volume control | Zero to full | ||
| Vibrator Standard | Option | ||
| Hard-chromed material cylinders | Standard | ||
| Hydraulic system | Closed-loop | ||
| Hydraulic system pressure | 350 bar | 5,075 psi | |
| Differential cylinder diameter | 140 mm | 5.5″ | |
| Rod diameter | 80 mm | 3″ | |
| Maximum size aggregate | 60 mm | 2.4″ | |
43-Meter RZ Concrete Boom Pumps
When you work in concrete pumping and construction, it pays to have equipment that offers the versatility and performance you need to tackle a variety of jobs efficiently. When you’re looking for a solution for both residential and commercial projects, an RZ 43-meter concrete boom pump is a must-have for your fleet.
DY Concrete Pumps Inc. has been meeting the needs of customers throughout Canada and the United States for years. Our experienced team will assist in analyzing your projects to identify the RZ boom concrete pumps, parts and accessories required to maximize your productivity and improve your bottom line.

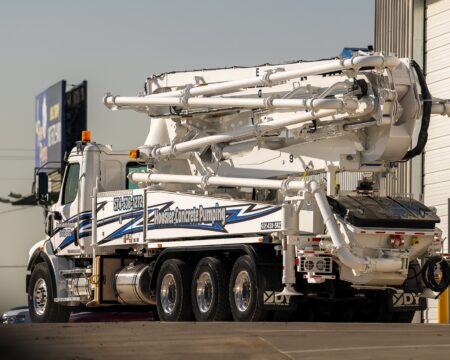

RZ 43-Meter Concrete Boom Pumps
Our RZ-fold concrete boom pumps are available in light- to medium-weight units providing the mobility to navigate high-traffic job sites, busy urban areas and quiet residential neighborhoods. The five-section boom design and continuous swing pedestal offers the flexibility to reach into tight spaces and is ideal for high-volume indoor pouring.
The RZ boom concrete pump design is a simplified, more versatile version of the Z-boom format, allowing for easier operation in a broader range of applications including:
- Commercial Use: The RZ boom pump offers the best Z-type or roll and fold units have to offer. Our 43-meter concrete boom pump is ideal for commercial jobs where you’re required to pour concrete into mezzanines, beneath beams and into upper-level walls and columns. It’s an exceptional choice when you need to reach over and under multiple obstacles such as trees, branches and power lines, as well as for pouring in structures where there’s only a small opening, such as a window or narrow door.
- Residential Work: Our 43-meter boom pump more than pays for itself on residential jobs by delivering improved speed and accuracy, as well as a cleaner, quieter and more organized work environment. The five-section RZ boom pattern extends further into buildings for more efficient delivery of concrete, whether you’re finishing a basement floor or pouring into second-floor wall forms. Our truck-mounted pumps eliminate the need for using messy and inefficient traditional mixers and buckets that tend to get stuck in soft earth and require far more manual labor.
Purchasing RZ Boom Concrete Pumps From DY
Our 43-meter concrete boom pump is among the most popular models in our inventory. DY truck-mounted pumps use less water than other mixing methods for concrete with improved structural integrity and lasting performance with minimal maintenance requirements. We manufacture these units using robotic-welded and high-quality steel — they also feature Rexroth hydraulic pumps, Honeywell PBC control panels and HBC radio remote controls. Additional benefits of purchasing DY RZ boom pumps include:
- Their ability to mount on truck chassis from leading manufacturers
- The easier-to-master boom design and operator controls
- Advanced closed-loop hydraulic system ensures smooth, efficient pump movement and operation.
- A one-year warranty on parts — excluding wear parts
- Complete parts, service and technical support
At DY Concrete Pumps, we’re “Taking Utilization to a New Level!” Experience the difference of purchasing from a trusted source of productive and reliable equipment. Contact us online today for more information, or to request a quote on a 43-meter RZ concrete boom pump.
