Boom Specifications – Roll-and-Z-Fold Design

Height & Reach48x-5rz
Vertical reach47.5 m155′ 10″
Horizontal reach43.2 m141′ 9″
Reach from front of truck40.66 m133′ 5″
Reach depth34.1 m111′ 11″
Unfolding height10.4 m34′ 1″
Boom Section Articulation
1st section articulation92 °
2nd section articulation180 °
3rd section articulation180 °
4th section articulation245 °
5th section articulation250 °

 Boom Section Length
1st section length9.5 m31′ 2″
2nd section length7.8 m25′ 7"
3rd section length7.7 m25′ 3″
4th section length9 m29′ 6″
5th section length9.4 m30′ 10"
General Specs
Pipeline size (ID) metric ends125 mm5″
Rotation360 degree
End hose – length3.5 m11’ 6″
End hose – diameter125 mm5″
Front Outrigger Spread: X-style, telescope & extend down8.87 m29′ 1″
Rear Outrigger Spread: Swing & extend down9.6 m31′ 6"

Pump Specifications

OutputRod side
Piston side
160 m3/hr
108 m3/hr
209 yd3/hr
141 yd3/hr
PressureRod side
Piston side
87 bar
130 bar
1,262 psi
1,886 psi
Material cylinder diameter230 mm9″
Stroke length2100 mm6’11”
Max strokesPer minute
Rod side
Piston side
1 minute
31
21
Volume controlZero to full
Vibrator StandardOption
Hard-chromed material cylindersStandard
Hydraulic systemClosed-loop
Hydraulic system pressure350 bar5,075 psi
Differential cylinder diameter140 mm5.5″
Rod diameter80 mm3″
Maximum size aggregate60 mm2.4″

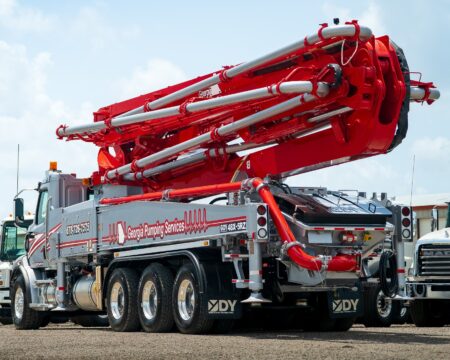

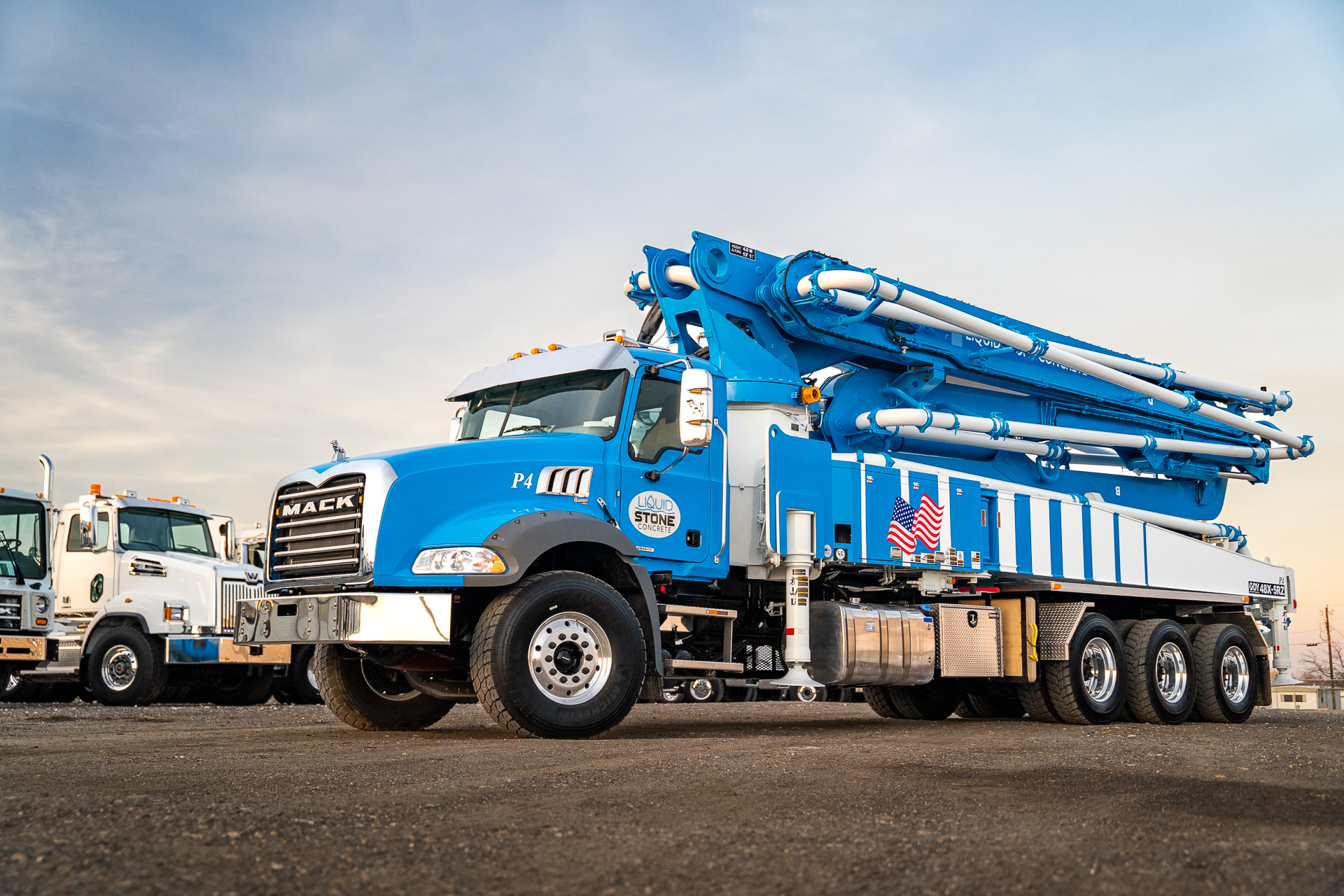

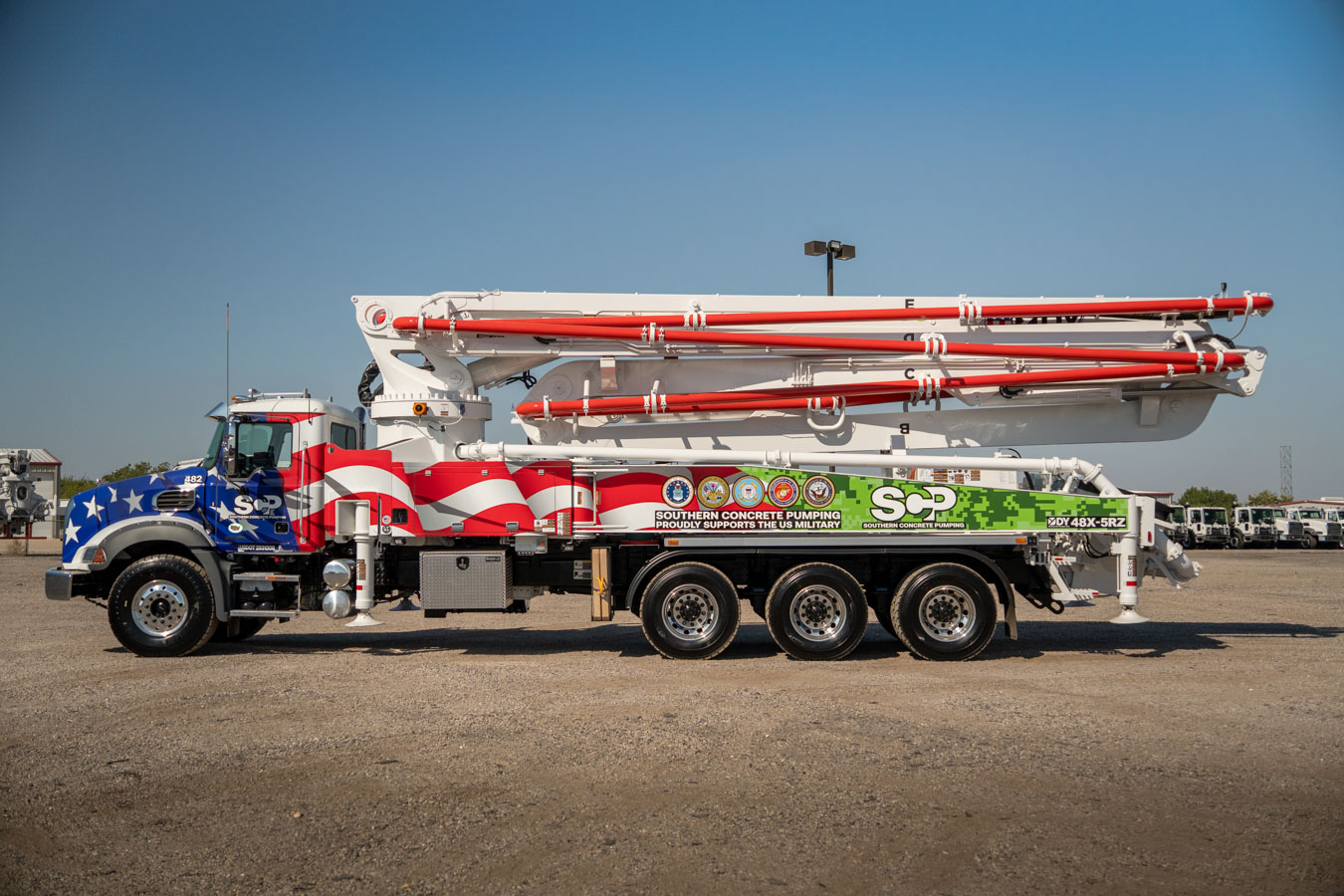

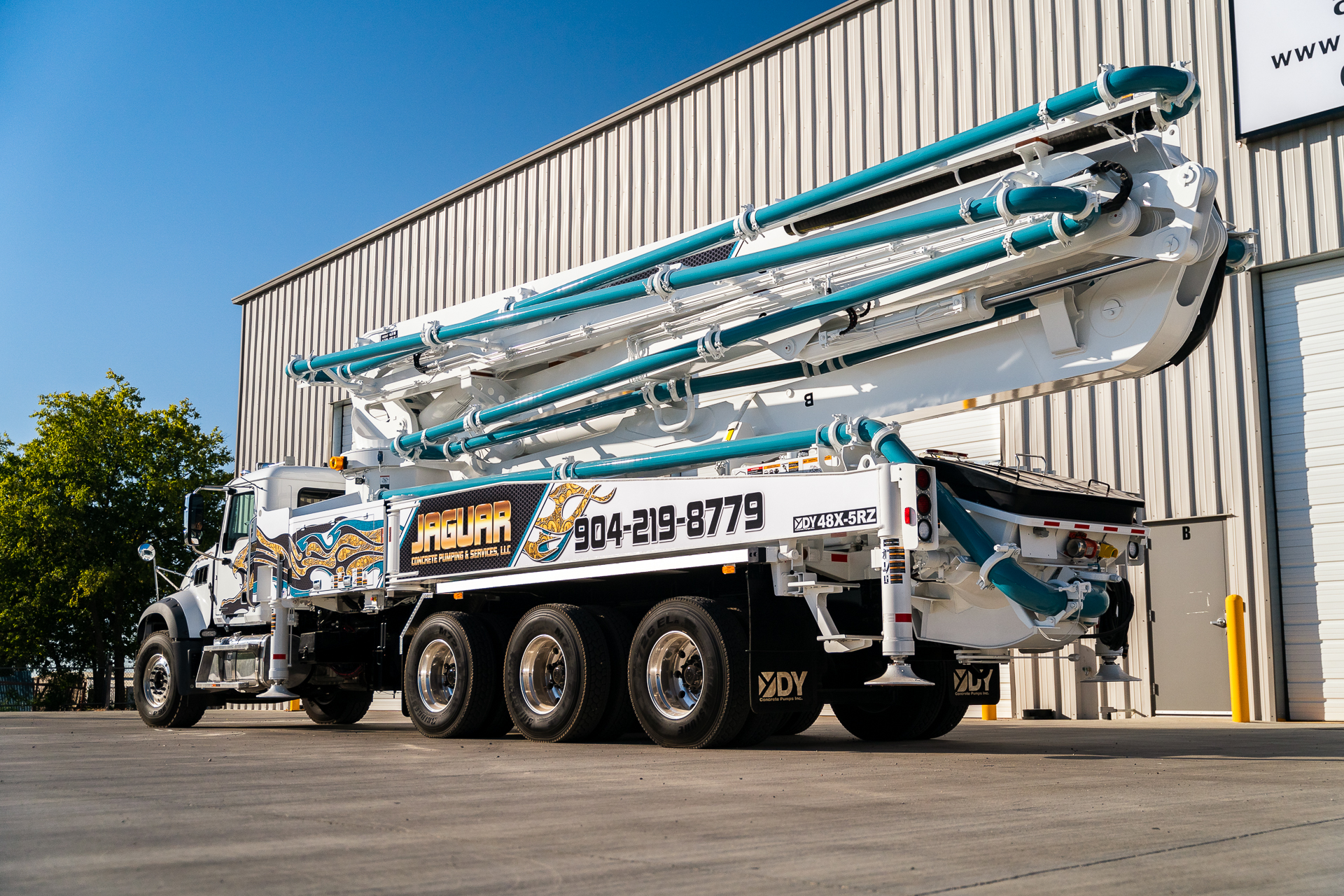

48-Meter RZ Concrete Boom Pump

The 48X-5RZ concrete boom pump offers the optimal size and range for commercial and industrial concrete pouring projects. This powerful, highly advanced, five-section concrete boom pump is equipped with a 360-degree continuous swing boom for maximum flexibility and mobility at the job site, along with innovative X-style outriggers for superior truck stability in even the most challenging work environments, making it the ideal choice for reach concrete pumping. You’ll be able to meet any project demand and complete jobs more quickly and efficiently than ever.

Request A Quote Today

Brief Synopsis of 48-Meter Concrete Boom Technical Specifications

front view of 48 meter 5 section RZ-fold boom pump manufactured for Burnco

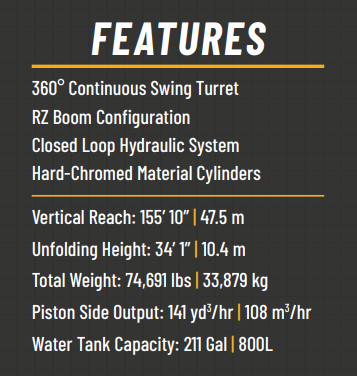

The 48X-5RZ weighs approximately 74,000 lbs. and is equipped with a 211-gallon water tank. The concrete boom’s reach from the front of the vehicle is 133’ 5”, the reach depth equals 111’ 11” and the boom unfolding height is 34’ 1”. The five-section concrete boom pump features the following length breakdown:
