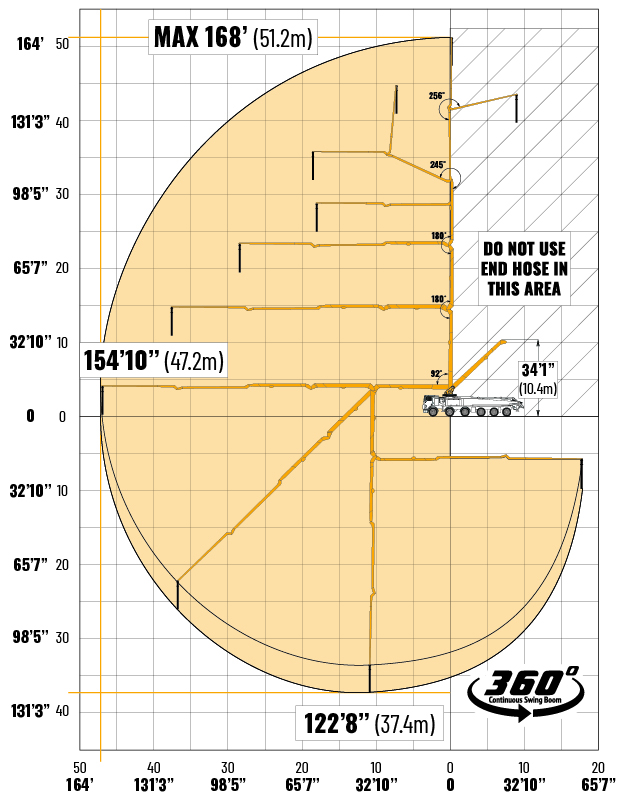

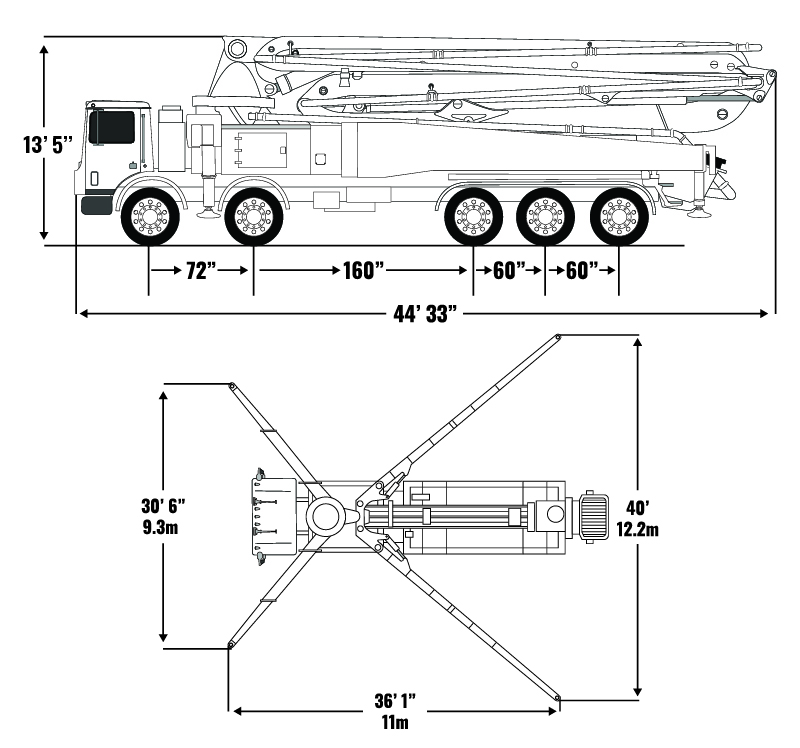

Boom Specifications – Roll-and-Z-Fold Design
| Height & Reach | 52X-5RZ | |
|---|---|---|
| Vertical Reach | 51.2 m | 168' |
| Horizontal Reach | 47.2 m | 154′ 10″ |
| Reach From Front Of Truck | 45.16 m | 148′ 2″ |
| Reach Depth | 37.39 m | 122′ 8″ |
| Unfolding Height | 10.4 m | 34′ 1″ |
| Boom Section Articulation | |
|---|---|
| 1st Section Articulation | 92° |
| 2nd Section Articulation | 180° |
| 3rd Section Articulation | 180° |
| 4th Section Articulation | 245° |
| 5th Section Articulation | 256° |
| Boom Section Length | ||
|---|---|---|
| 1st Section Length | 10.2 m | 33′ 6″ |
| 2nd Section Length | 8.85 m | 29′ |
| 3rd Section Length | 8.75 m | 28′ 8″ |
| 4th Section Length | 9.65 m | 31′ 8″ |
| 5th Section Length | 9.75 m | 32′ |
| General Specs | |||
|---|---|---|---|
| Pipeline Size (ID) Metric Ends | 125 mm | 5″ | |
| Rotation | 360° Continuous Swing | ||
| End Hose Length | 3.5 m | 11’ 6″ | |
| End Hose Diameter | 125 mm | 5″ | |
| Front Outrigger Spread: X-Style, Telescope & Extend Down | 9.3 m | 30′ 6″ | |
| Rear Outrigger Spread: Swing & Extend Down | 12.2 m | 40′ | |
Pump Specifications
| Output | Rod Side Piston Side | 180 m3/hr 121 m3/hr | 235 yd3/hr 158 yd3/hr |
| Pressure | Rod Side Piston Side | 85 bar 130 bar | 1,232 psi 1,886 psi |
| Material Cylinder Diameter | 230 mm | 9″ | |
| Stroke Length | 2350 mm | 7’9” | |
| Max Strokes Per Minute | Rod Side Piston Side | 34 23 |
|
| Volume Control | Zero to full | ||
| Vibrator Standard | Option | ||
| Hard-Chromed Material Cylinders | Standard | ||
| Hydraulic System | Closed-loop | ||
| Hydraulic System Pressure | 350 bar | 5,075 psi | |
| Differential Cylinder Diameter | 140 mm | 5.5″ | |
| Rod Diameter | 80 mm | 3″ | |
| Maximum Size Aggregate | 60 mm | 2.4″ | |
52-Meter RZ Concrete Boom Pumps

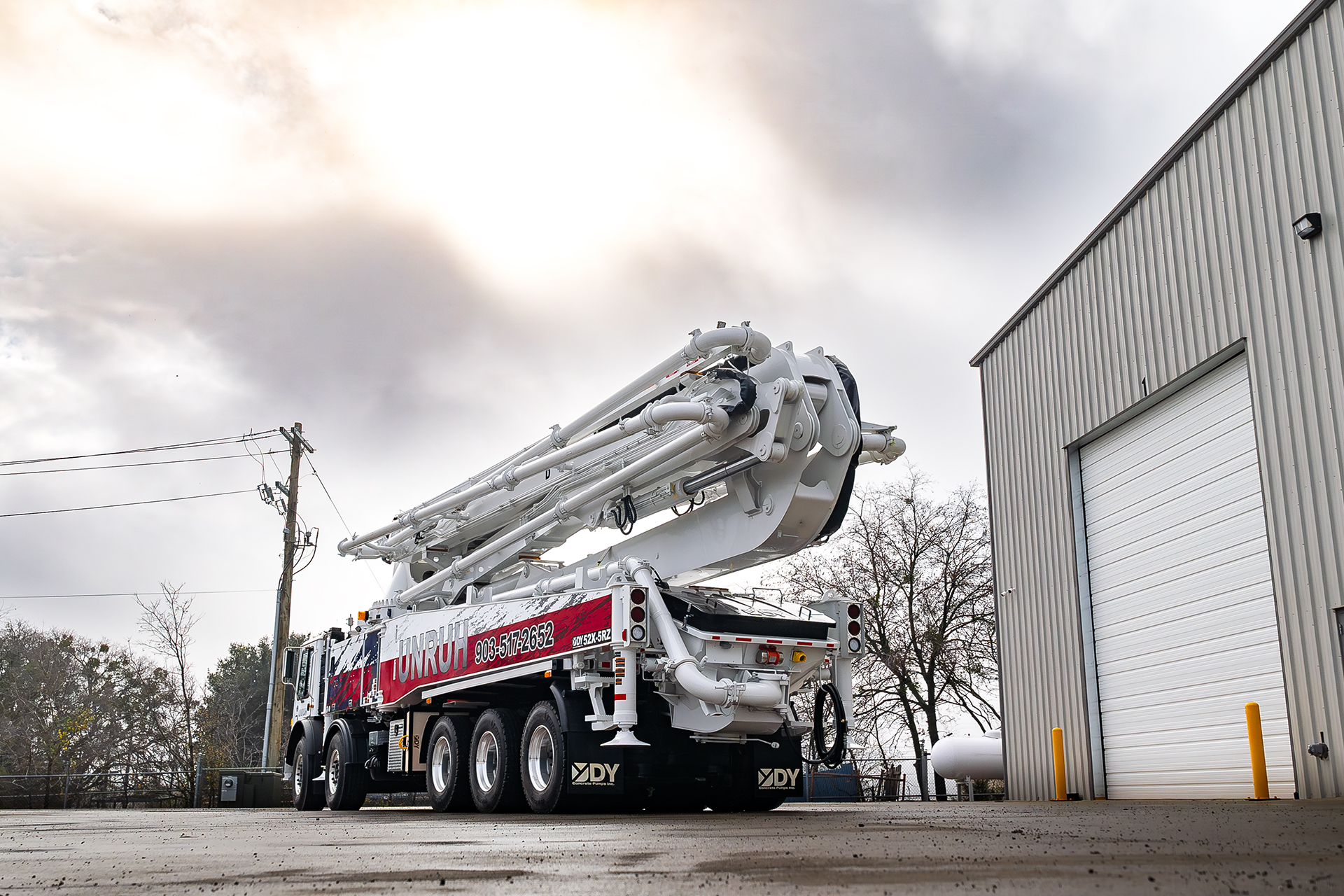

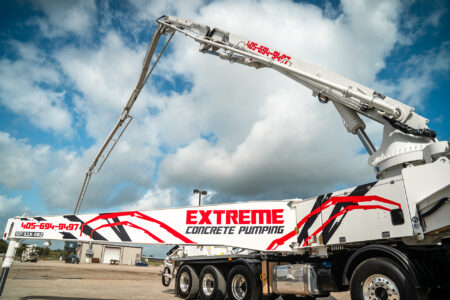

The 52X-5RZ concrete boom pump delivers an ideal balance of reach, maneuverability, and productivity for a wide range of commercial and industrial concrete placement projects. With a five section boom and 360 degree continuous swing capability, the 52X-5RZ provides exceptional flexibility on the job site, allowing operators to efficiently place concrete in challenging locations while maintaining precise control.
This size class has become one of the most versatile pumps in the industry, making it well suited for everything from large commercial buildings and infrastructure projects to modern data center construction. Data center projects in particular benefit from the 52 meter reach, allowing contractors to efficiently place large slab pours, thick foundations, and structural concrete across wide building footprints while maintaining strong job site mobility.
The 52X-5RZ is equipped with an innovative X style outrigger system that provides excellent stability and allows the truck to set up confidently even in tight or uneven job site conditions. Combined with simplified radio remote controls and a well balanced five section boom design, operators can quickly position the boom for efficient concrete placement with less labor and reduced setup time.
Whether placing foundations, decks, columns, parking structures, or large slab pours for commercial and data center facilities, the 52X-5RZ delivers the reach, stability, and performance contractors need to complete demanding projects safely and efficiently.
Key 52X-5RZ Features and Benefits
The 52X-5RZ contains an impressive assortment of features that will add significant value to all your industrial and commercial construction projects:
- The impressive 52-meter (167’) vertical reach enables you to pour concrete from high elevations without spilling or creating a mess on the jobsite, making this model the ideal solution for reach concrete pumping.
- The substantial 47-meter (154’) horizontal reach of this concrete boom allows your operators to park your trucks on stable ground and extend outward to pour, which minimizes the risk of vehicles getting stuck or sinking in mud.
- Numerous flexible chassis options make it easy to mount the 52-meter concrete boom pump on vehicles manufactured by industry leaders such as Mack, Peterbilt, Freightliner, Kenworth and Western Star. The 52-meter concrete boom pump only requires a five-axle chassis due to its sleek and lightweight design.
- We manufacture this five-section concrete boom pump from high-quality steel and using advanced welding techniques to ensure maximum durability with minimal maintenance requirements.
- The user-friendly HBC radio remote simplifies operation and increases efficiency, which saves time and boosts productivity.
- The closed-loop hydraulic system provides smooth operation in all types of working conditions.
Brief Synopsis of 52-Meter Concrete Boom Technical Specifications

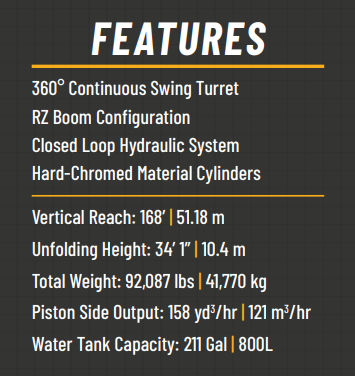

The 52X-5RZ weighs approximately 92,000 lbs. and is equipped with a 211-gallon water tank. The concrete boom’s reach from the front of the vehicle is 148’ 2”, the reach depth equals 122’ 8” and the boom unfolding height is 34’ 1”. The five-section concrete boom pump features the following length breakdown:
- 1st section: 10. 2m (33’ 6”)
- 2nd section: 8.85m (29’)
- 3rd section: 8.75m (28’ 8”)
- 4th section: 9.65m (31’ 8”)
- 5th section: 9.75m (32’)
DY Concrete Pumps Can Meet All Your Concrete Boom Pump Needs
At DY Concrete Pumps, we take pride in our ability to sell high-quality products at competitive prices. Our strategic partnership with DY Korea means we can offer the world’s best concrete boom pumps to construction operations of all types throughout North America. With years of concrete pump expertise, you can count on us to have well-designed products that will solve your biggest concrete mixing and pouring challenges and exceed your performance expectations.
With facilities in Calgary, AB and Dallas Fort Worth, TX, we can provide prompt service anywhere in North America. Whether you need technical support, start-up assistance or fast parts delivery, we’re always just a quick phone call away. Our staff also includes skilled field technicians who can provide reliable in-person support when needed.
To learn more about our five-section concrete boom pumps or to receive a customized quote, just submit our convenient online contact form today.
