Boom Specification – Double-Z-Fold Design

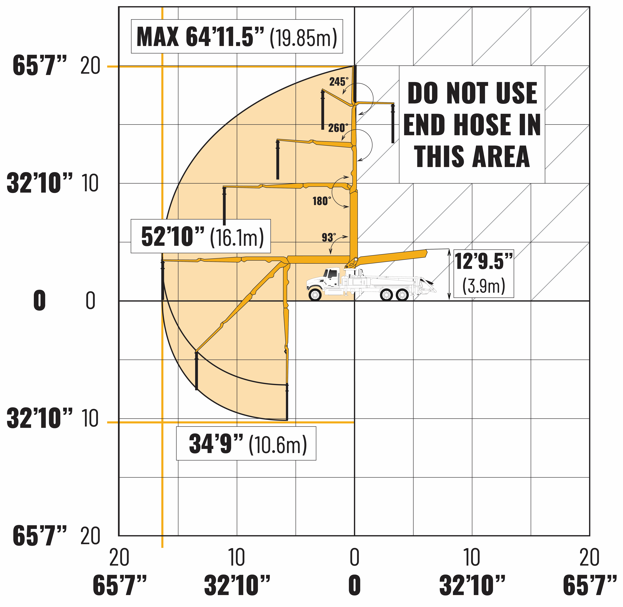

| Height & Reach | 20X-4ZR | |
|---|---|---|
| Vertical reach | 19.85 m | 64’11.5″ |
| Horizontal reach | 16.1 m | 52’10″ |
| Reach from front of truck | 12.6 m | 41'4″ |
| Reach depth | 10.6 m | 34'9″ |
| Unfolding height | 3.9 m | 12′9.5" |
| Boom Section Articulation | |
|---|---|
| 1st section articulation | 93 ° |
| 2nd section articulation | 180 ° |
| 3rd section articulation | 260 ° |
| 4th section articulation | 245 ° |
| Boom Section Length | ||
|---|---|---|
| 1st section length | 5.5 m | 18'1” |
| 2nd section length | 3.5 m | 11'7" |
| 3rd section length | 3.5 m | 11'7" |
| 4th section length | 3.7 m | 12'1" |
| General Specs | ||
|---|---|---|
| Pipeline size (ID) metric ends | 125 mm | 5″ |
| End hose – length | 3 m | 9'10" |
| End hose – diameter | 125 mm | 5″ |

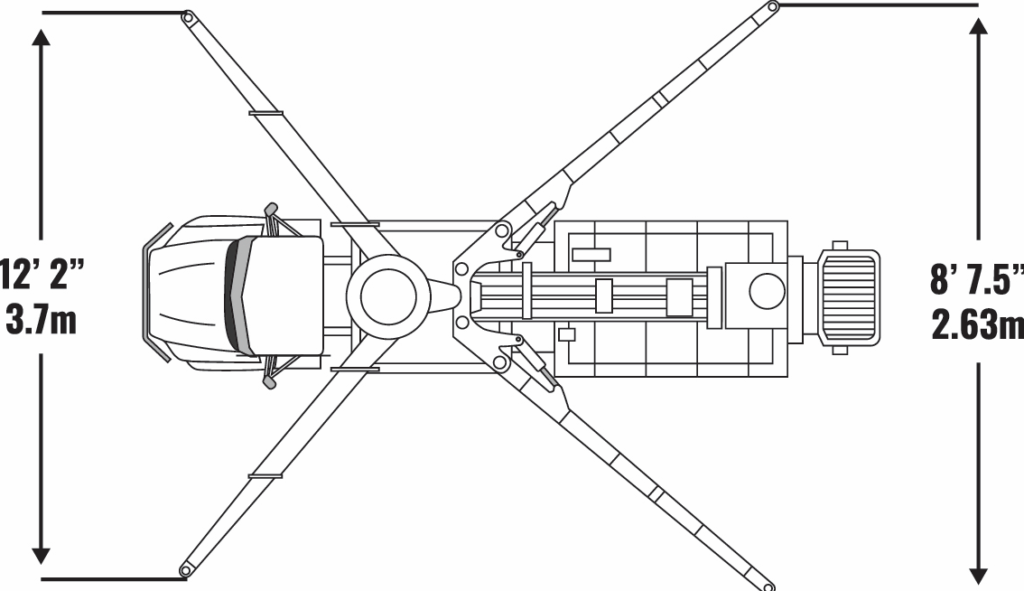

| Front Outrigger Spread: Telescope Out | 3.7 m | 12'2″ |
| Rear Outrigger Spread: Swing Out | 2.6 m | 8'8" |
Pump Specifications
| Output | rod side piston side | 96 m3/hr 60 m3/hr | 126 yd3/hr 78 yd3/hr |
| Pressure | rod side piston side | 85 bar 137 bar | 1,232 psi 1,987 psi |
| Material cylinder diameter | 200 mm | 8″ | |
| Strokes | per minute rod side piston side | 1 minute 31 19 |
|
| Volume Control | Zero to full | ||
| Hopper Vibrator | Standard | ||
| Hard-Chromed Material Cylinders | Standard | ||
| Hydraulic System | Closed Loop | ||
| Hydraulic system pressure | 325 bar | 4,713 psi | |
| Differential cylinder diameter | 130 mm | 5″ | |
| Rod diameter | 80 mm | 3″ | |
| Maximum size aggregate | 60 mm | 2.4″ | |

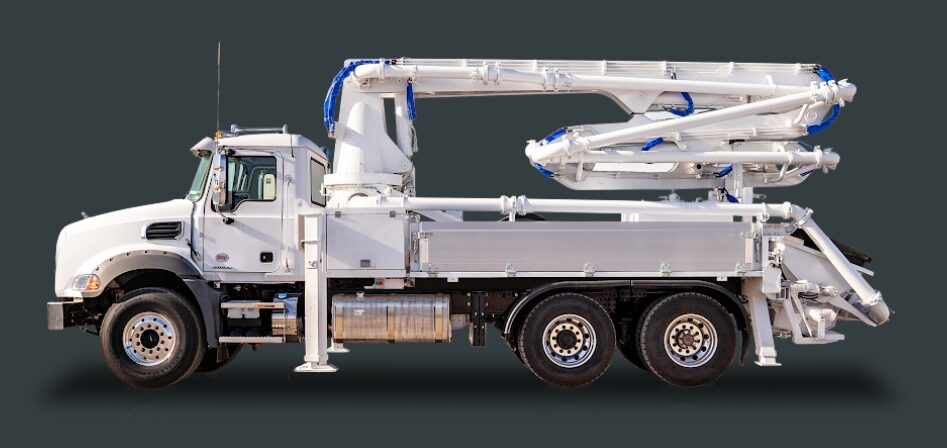

20X-4ZR Concrete Boom Pump
The DY 20X-4ZR concrete boom pump is a compact, high-performance truck-mounted pump designed for residential, commercial, and light industrial concrete placement. With a 4-section Z-roll-fold boom, low unfolding height, and powerful closed-loop hydraulic system, the 20X-4ZR delivers smooth, precise placement in tight and restricted job sites.
This 20-meter boom pump is ideal for contractors looking for maximum maneuverability, fast setup, and reliable output without sacrificing reach or performance.
20-Meter ZR Concrete Boom Pump Applications
The DY 20X-4ZR is designed for a wide range of concrete placement applications, including:
-
Residential foundations and slabs
-
Commercial footings and walls
-
Sidewalks and driveways
-
Interior pours
-
Limited-access and urban job sites
Why Choose the DY 20X-4ZR Concrete Boom Pump?
If you’re in the construction business and need a fast, efficient method for pouring concrete, our 20-meter concrete boom pump offers the following benefits:
- Compact 20-meter reach with powerful pumping performance
- Low unfolding height for interior and overhead placements
- 4-section Z-roll-fold boom for precise placement
- Powerful closed-loop hydraulic system for smooth, consistent pumping
- Z-roll-fold boom design for superior maneuverability
- Built with durable, hard-wearing components for long service life
- Designed and built to DY Concrete Pumps quality standards
Features and Benefits

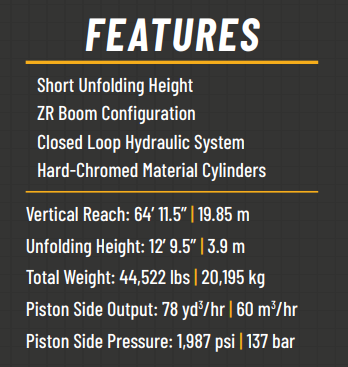

The 20X-4ZR construction concrete boom pump features a maximum horizontal reach of 52’ 10” with a vertical reach of 64’ 11.5”. This truck-mounted four-section Z-roll-fold boom offers a reach capacity of 41’ 4” from the front of the vehicle, making it ideal for tight residential and commercial job sites. The boom’s reach depth is 34’ 9”, while the total unfolding height required is only 12’ 9.5”, allowing for efficient operation in areas with limited overhead clearance.
The operator-friendly radio remote control system provides smooth, precise boom and pump control, helping operators place concrete accurately and safely.
Choose from multiple chassis options to fit the 20X-4ZR onto vehicles from leading manufacturers including Peterbilt, Mack, Western Star, Freightliner and Kenworth.
