Boom Specifications – Roll-and-Z-Fold Design
| Height & Reach | 57x-6RZ | |
|---|---|---|
| Vertical Reach | 56.5 m | 185′ 4″ |
| Horizontal Reach | 52.5 m | 172′ 3″ |
| Reach From Front Of Truck | 50.46 m | 165′ 7″ |
| Reach Depth | 41.6 m | 135′ 6″ |
| Unfolding Height | 11.6 m | 38′ 1″ |
| Boom Section Articulation | |
|---|---|
| 1st Section Articulation | 91° |
| 2nd Section Articulation | 180° |
| 3rd Section Articulation | 180° |
| 4th Section Articulation | 245° |
| 5th Section Articulation | 240° |
| 6th Section Articulation | 90° |
| Boom Section Lengths | ||
|---|---|---|
| 1st Section Length | 11.3 m | 37′ 1″ |
| 2nd Section Length | 9.25 m | 30′ 4″ |
| 3rd Section Length | 9.25 m | 30′ 4″ |
| 4th Section Length | 11 m | 36′ 1″ |
| 5th Section Length | 6.9 m | 22′ 8″ |
| 6th Section Length | 4.8 m | 14′ 9″ |
| General Specs | ||
|---|---|---|
| Pipeline size (ID) Metric Ends | 125 mm | 5″ |
| End Hose Length | 3.5 m | 11’ 6″ |
| End Hose Diameter | 125 mm | 5″ |

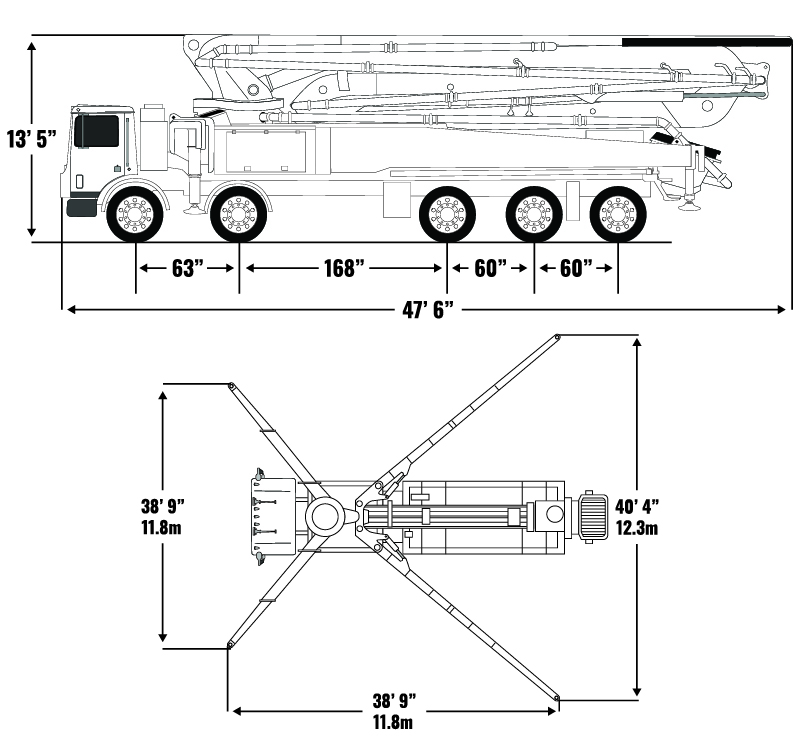

| Front Outrigger Spread: X-Type, Telescope & Extend Down | 11.8 m | 38′ 9″ |
| Rear Outrigger Spread: Swing Out & Extend Down | 12.3 m | 40′ 4″ |
Pump Specifications
| Output | Rod Side Piston Side | 180 m3/hr 121 m3/hr | 235 yd3/hr 158 yd3/hr |
| Pressure | Rod Side Piston Side | 85 bar 130 bar | 1,232 psi 1,886 psi |
| Material Cylinder Diameter | 230 mm | 9″ | |
| Stroke Length | 2100 mm | 6’11” | |
| Max Strokes Per Minute | Rod Side Piston Side | 34 23 |
|
| Volume Control | Zero to full | ||
| Hopper Vibrator | Standard | ||
| Hard-Chromed Material Cylinders | Standard | ||
| Hydraulic System | Closed-loop | ||
| Hydraulic System Pressure | 350 bar | 5,075 psi | |
| Differential Cylinder Diameter | 140 mm | 5.5″ | |
| Rod Diameter | 80 mm | 3″ | |
| Maximum Size Aggregate | 60 mm | 2.4″ | |
Now Available, 57-Meter X 6-Section RZ Concrete Boom Pump
The invention and advancement of concrete pumping capabilities have revolutionized the construction industry. As the types of buildings and architectural designs continue to evolve, so does our concrete pumping technology.
When you’re looking for ways to speed up productivity, improve quality and overcome the challenges of modern commercial construction projects, nothing beats the performance and versatility of a 6-section, 57-meter concrete boom pump with x-style outriggers.
The Most Impressive 57-Meter Concrete Boom Pumps for Commercial Projects
The RZ 57-meter concrete boom pump is our longest reaching and most productive pump for medium to large commercial construction projects. The 57X-6RZ features a six section boom that provides exceptional maneuverability compared to other 57-meter boom pumps on the market today. This design allows operators to work efficiently in congested job sites while still achieving the reach required for large scale construction.
This pump is especially well suited for high rise construction and large infrastructure projects, delivering high performance concrete placement in tight spaces and at elevated locations. It is also an excellent solution for modern data center construction, where large floor slabs, thick foundations, and tight job site logistics demand both reach and precision. The long boom and versatile articulation make it possible to place concrete quickly and efficiently across large building footprints common in data center campuses.
The 57-meter concrete boom pump utilizes an X-style outrigger layout that provides excellent stability while maintaining strong job site mobility. The six section boom combined with simplified radio remote controls allows operators to position the boom precisely with less effort, improving both productivity and safety.
From pumping concrete to upper floors for walls and columns to placing foundations, decks, parking structures, and large slab pours, the 57X-6RZ delivers the reach, control, and performance required to keep demanding commercial and infrastructure projects moving efficiently.
Whether you’re working in a congested urban center or taking on a massive high-rise project, you benefit from exceptional vertical, horizontal and front-of-truck reach, as well as:
- Numerous flexible chassis options make it easy to mount the 57-meter concrete boom pump on vehicles manufactured by industry leaders such as Mack, Peterbilt, Freightliner, Kenworth and Western Star.
- Only requires a five axle chassis due to sleek and lightweight design
- 245-degree third boom section articulation
- Low-effort maintenance and easy-clean hoppers
- PBC Control Panel made by Honeywell
- Rexroth German-made hydraulic pumps
- Advanced closed-loop hydraulic system ensures smooth, efficient pump movement and operation.
Reliable and Productive 6-Section Concrete Boom Pumps
DY Concrete Pumps Inc. calls on years of experience serving customers throughout the U.S. and Canada. Our high-quality booms are designed and manufactured using exceptionally-strong steel for lasting durability. Units also feature manual engine override options for safer performance and are backed by a limited one-year warranty on parts.
As a full-service source for commercial concrete boom pumps, DY provides an extensive inventory of replacement parts in stock for all models. Cold climate packages are also available on 57X-6RZ boom pumps to ensure you’re ready to meet all local operating requirements in the winter weather. We offer strategically placed locations in Calgary and Dallas/Fort Worth, so we can get you the parts you need fast and eliminate costly downtime.
DY Concrete Pumps: Taking Utilization to a New Level!
The most significant and challenging commercial construction projects call for innovative solutions that save time and money while delivering results. Our 6-section, 57-meter concrete boom pumps help you get more work done in less time, lowering your company’s manual labor requirements so you can better allocate your assets.
Whether you’re looking for an effective high-rise concrete boom pump or an answer for keeping pace on a massive commercial project, we have the solutions you’re searching for. Contact us by filling out our online request form to receive assistance from a knowledgeable, live representative.
